WLAN surveillance set including monitor & 2x 3MP cameras INKO-AL3003-2
INKOVIDEO
WLAN surveillance set including monitor & 2x 3MP cameras INKO-AL3003-2
WLAN surveillance set including monitor & 2x 3MP cameras INKO-AL3003-2
SKU:1420008
Out of stock
Couldn't load pickup availability
shares
WLAN surveillance set with integrated 30.48 cm (12 inch) monitor and 2x 3MP surveillance cameras.
WiFi-based surveillance kits offer customers a cost-effective, easy-to-use and quality alternative to the traditional expensive and complicated surveillance solutions. The sets are easy to set up and ready to use in minutes. Detailed instructions are always included.
The INKO-AL3003-2 model is best suited for private households and small commercial properties. The set consists of cameras and a recording device with an integrated 12" (30.48 cm) monitor. The monitor delivers sharp images in Full HD resolution.
Thanks to the direct connection of the cameras to the recording device, your existing WLAN network is not burdened. The data transmission is of course encrypted and therefore the data cannot simply be intercepted. Worldwide access to the system via smartphone is also possible via the corresponding app.
The data can be recorded directly on a 3.5" SATA hard disk. (optionally available) Corresponding installation slot is available on the back of the device.
The new H.265 compression format allows larger amounts of data to be stored with the same quality.
The cameras are suitable for both indoor and outdoor areas.
Strong IR LEDs ensure good night vision up to 20m.
Key Features
- Camera resolution 3MP, 1296P
- Global access via smartphone
- H.265 compression format
- Big display
- Installation slot for the hard disk
- night vision
- Weatherproof Cameras
TECHNICAL SPECIFICATIONS
network recorder
| processor | professional industrial processor | |
| video audio input | Network Video Input | 4 channels |
| video output | HDMI output | 1 channel, resolution: 1024x768, 1280x1024,1366x768, 1440x900,1920x1080p |
| video compression | default | H.265, H.264, H265+ |
| Video encoding specification | recording resolution | 720P/960P/1080P/1296P |
| reproduction | 4 channel | |
| video management | recording mode | Manual recording, Scheduled recording, Motion detection recording, Alarm recording |
| playback mode | Instant replay, General replay, Event replay | |
| backup mode | general backup | |
| HDD drive | Type | 1 x SATA connector |
| capacity | Max 6TB | |
| external interface | network connection | 1 x RJ45 10M/100M self-adapting Ethernet port |
| USB | 1 x USB2.0 | |
| network management | network protocol | UPnP (plug and play), SMTP (email service), PPPoE, DHCP, etc. |
| Other | power supply | DC 12V 2A |
| power consumption | ≤5W | |
| working temperature | -10℃--＋55℃ | |
| dimension | 258×210×42mm | |
| Weight | ≤1kg | |

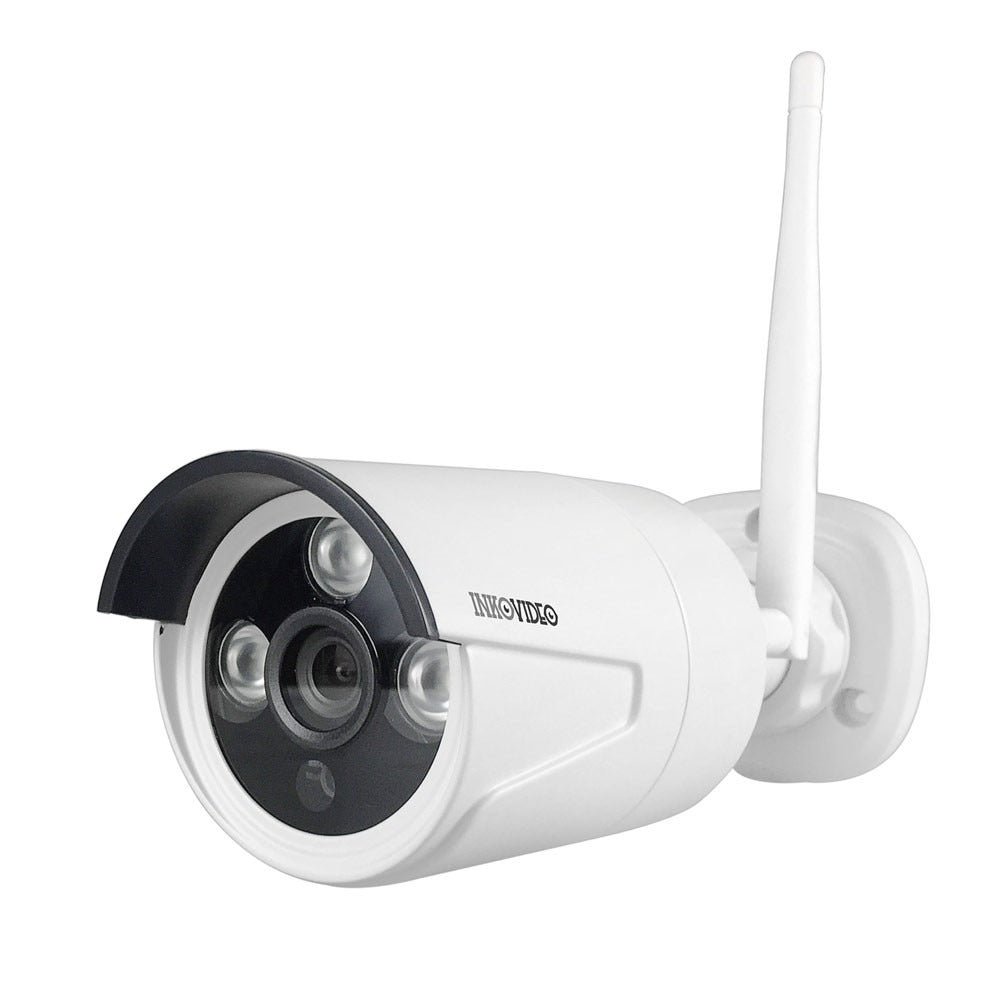

network cameras
| image sensor | 1/3” progressive scan sensor |
| Horizontal viewing angle | Max. 80° |
| S/N ratio | > 39.1dB |
| video compression | H.264, H264+, H.265, H265+ |
| resolution | 3MP, 2304x1296 |
| Minimum lighting | Color: 0.01lux; B/W: 0.001 lux |
| lens | 3.6mm |
| OSD | date, time and title |
| white balance | automobile |
| day and night | Auto / Color / B&W |
| 3D DNR | automobile |
| Mirror / Flip | On off |
| dual stream | Yes |
| power supply | DC12V-1A |
| power consumption | ≤6W |
| WIRELESS INTERNET ACCESS | WIFI 802.11b/g/n |
| material | metal |
| working temperature / humidity | -10℃ - +50℃ / 30% - 80%RH |
| storage temperature / humidity | -20℃ - +60℃ / 20% - 90%RH |
| dimension | 66x180mm |
- 1 x 4 channel NVR with integrated 12" (30.48cm) monitor
- 2 x WiFi Network Camera
- 1 x network cable
- 3 x power adapters
- 1x Mouse
- stand
- mounting accessories
- Operating instructions (German)
(Hard drive not included.)
