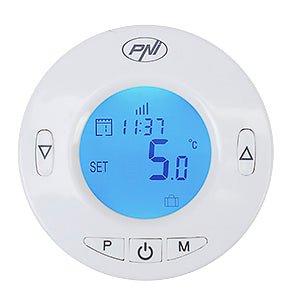

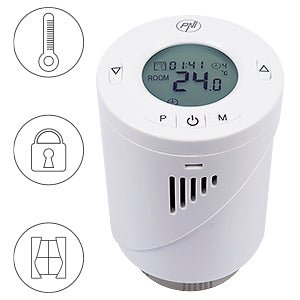

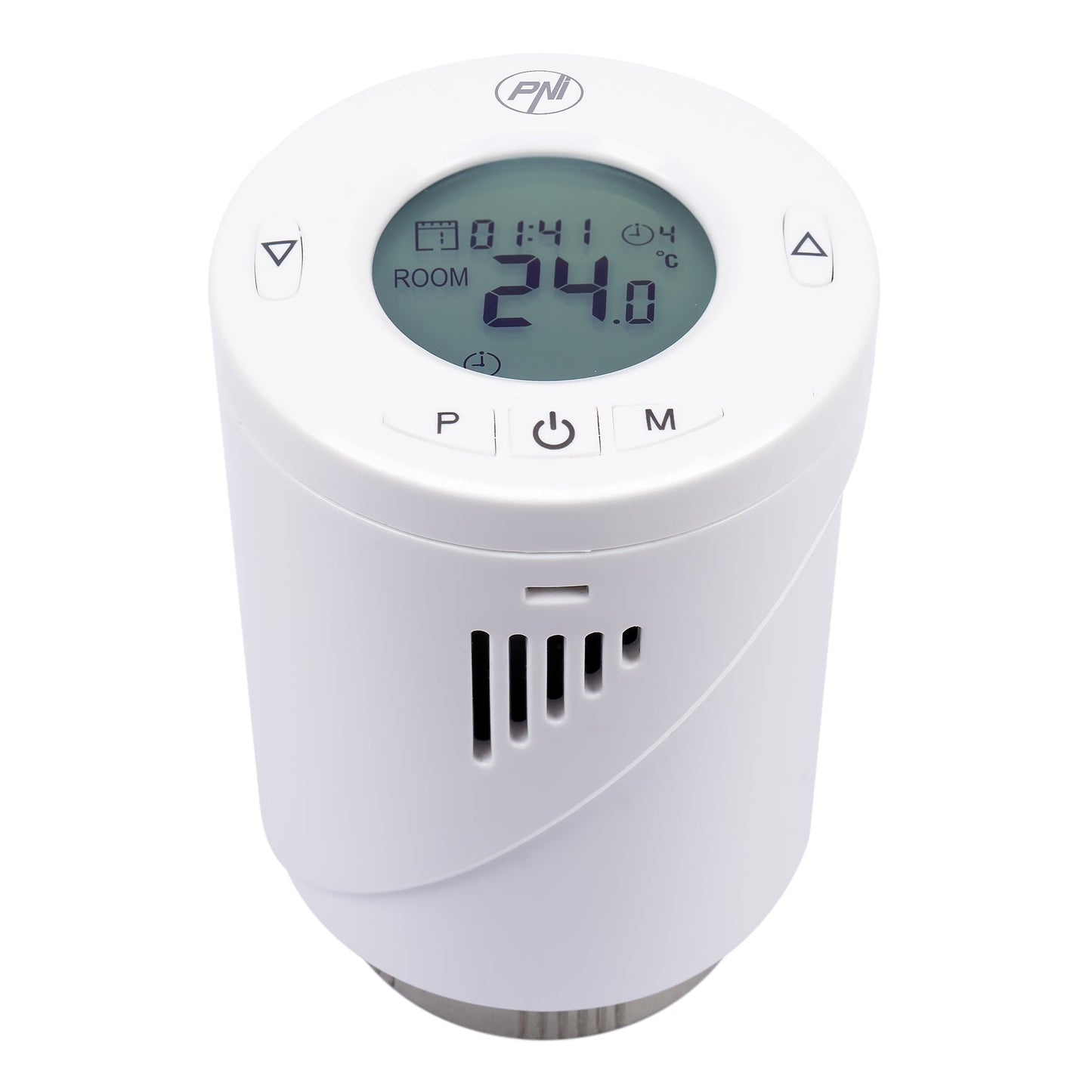

PNi CT25T Smart Radiator Thermostat
Thermostatic head, hysteresis 0.5 °C
PNI CT25T is a thermostat that measures the air temperature and regulates the water flow from the radiator accordingly. Install a thermostatic head on each radiator and set the desired temperature for each room individually. How quickly the temperature rises in a room depends on the boiler settings and the size of the radiator. The package includes a set of 6 adapters to ensure compatibility with various thermostatic valves (Danfoss, Giacomini, Caleffi, etc.).
Plan by day
You can set up to 4 time periods , each with its own temperature limit, for each day of the week. In this way, you can set the temperature individually for each day, depending on when you are at home or not.
Here is an example for 4 periods in one day:
06:00 - 23 degrees
08:00 - 22 degrees
17:00 - 23 degrees
23:00 - 22 degrees
parameter setting menu
In the "Advanced settings" menu you can set parameters for various functions: hysteresis, antifreeze temperature, child protection function, "open window" function, reset, etc.
Key lock for child safety
If the child lock function has been activated in the advanced settings, the thermostat buttons will be locked. As soon as the backlight of the screen goes out, it is active.
Frost protection function
With the frost protection function, you can leave the apartment in peace. Set a temperature level between 5 °C and 15 °C in the "Advanced settings" menu. This temperature will be maintained while you are away from home.
remote control

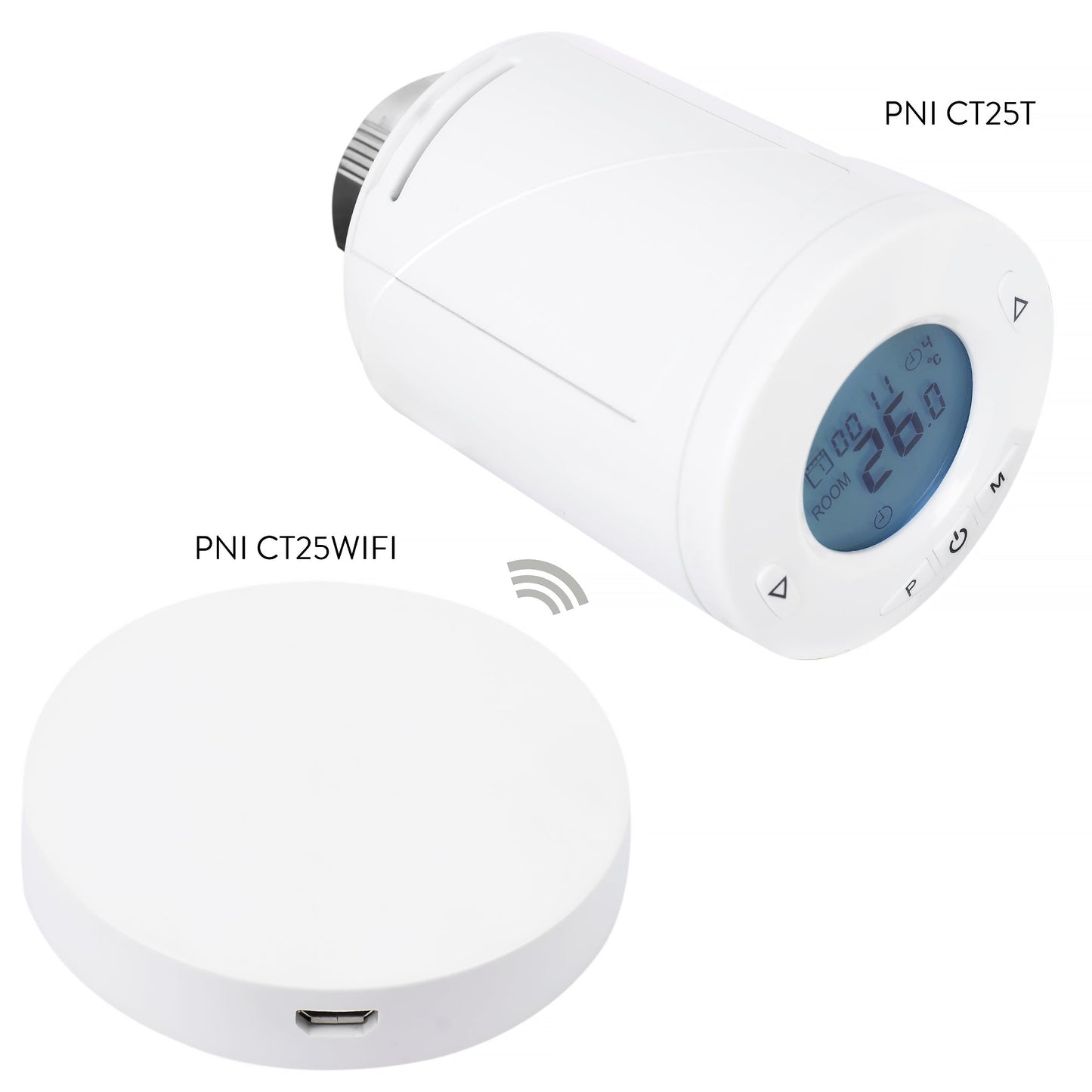

The PNI CT25T thermostatic head can only be controlled remotely using the PNI CT25WIFI hub (sold separately). By pairing the two devices and adding the hub in the Tuya Smart application, you can remotely perform various operations
- temperature setting
- Turn on/off thermostat
- Change operating mode
- weekly program setting.
