Thermal imaging camera, night vision device HIKMICRO Lynx LC06S for people & animal detection, new version
HIKMICRO
Thermal imaging camera, night vision device HIKMICRO Lynx LC06S for people & animal detection, new version
Thermal imaging camera, night vision device HIKMICRO Lynx LC06S for people & animal detection, new version
SKU:1410597
shares
ss
HIKMICRO LYNX LC06S thermal imaging camera, night vision device for people & animal detection

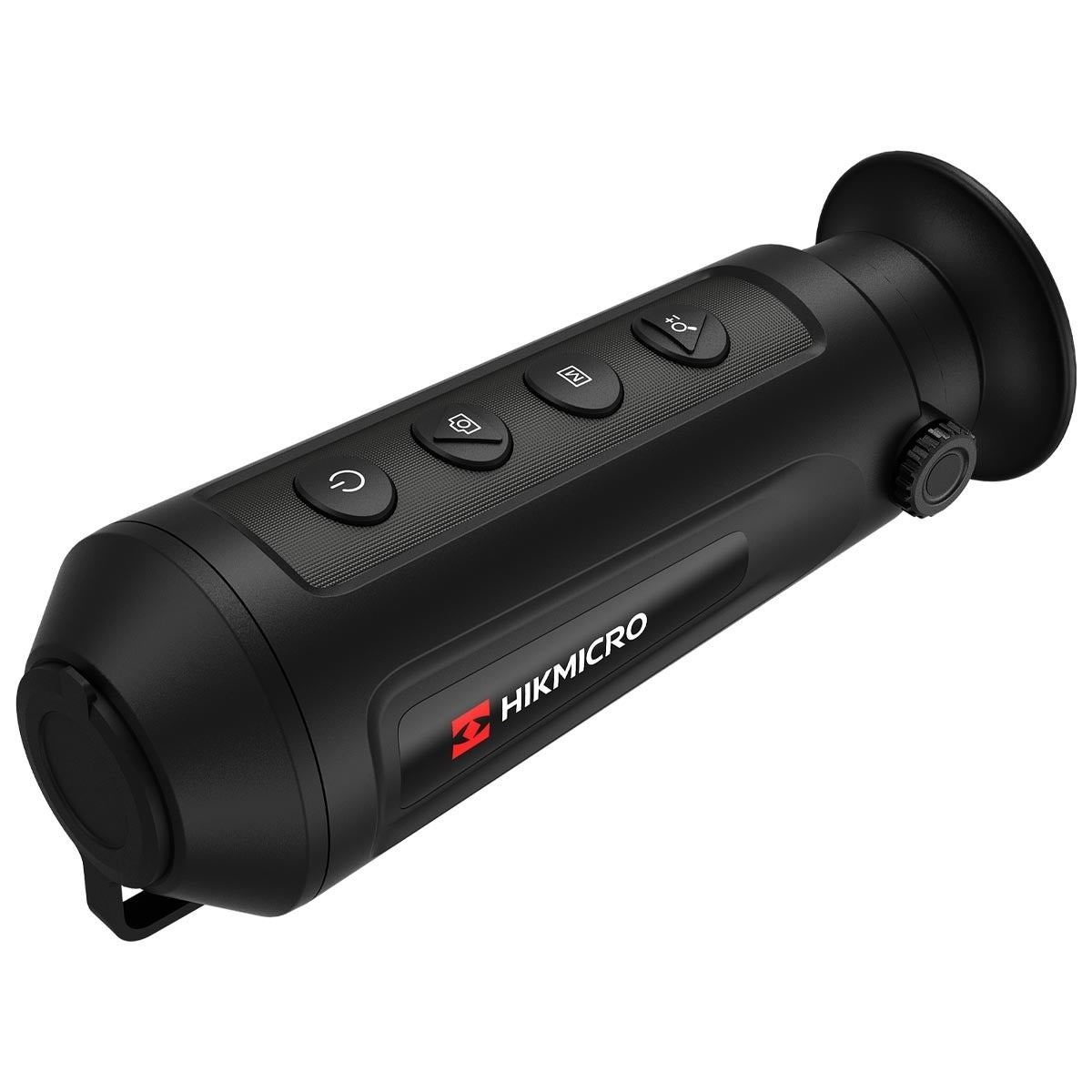

The HIKMICRO LYNX S (LC06S) is a compact and powerful thermal imaging night vision camera, it is particularly suitable for hunters, outdoor activities and nature observation as a perfect and reliable companion and delivers clear and detailed images even in complete darkness. With its compact and lightweight design, this monocular offers an ideal combination of mobility and performance.

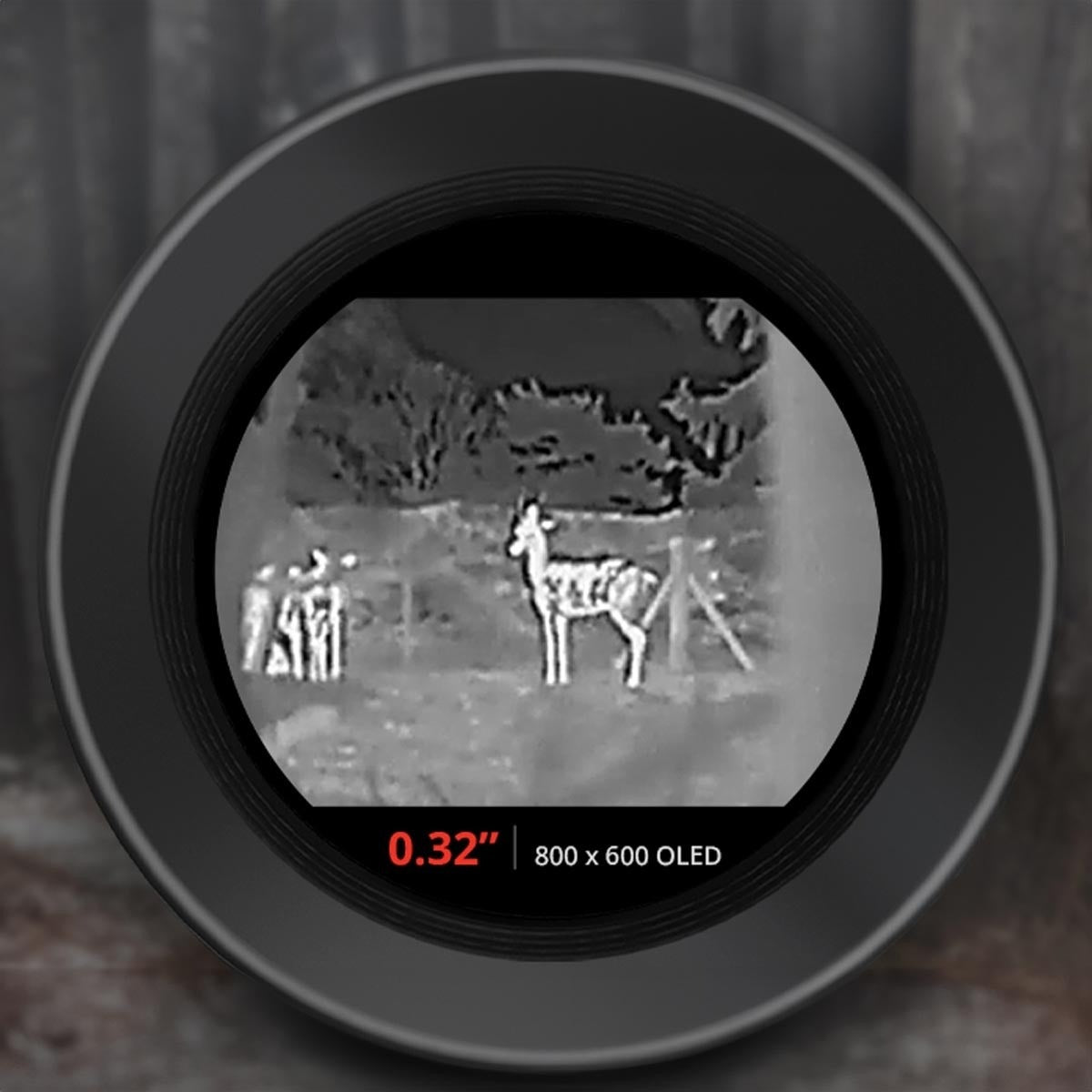

The LYNX S LC06S is equipped with a high-resolution 0.32 inch OLED display (800 × 600 pixels) that ensures optimal display. The display offers a wide viewing angle, intense colors and low power consumption, which enables longer operating times. Thanks to a refresh rate of 50 Hz, smooth and precise images are displayed that do not tire the eyes even when viewed for long periods.
With a detection range of up to 250 meters and a large field of view of 43.8 m at a distance of 100 m, the LC06S model is particularly suitable for hunting and nature observation in forest areas . With an impressive detection range of up to 1200 meters, even distant targets can be reliably detected.

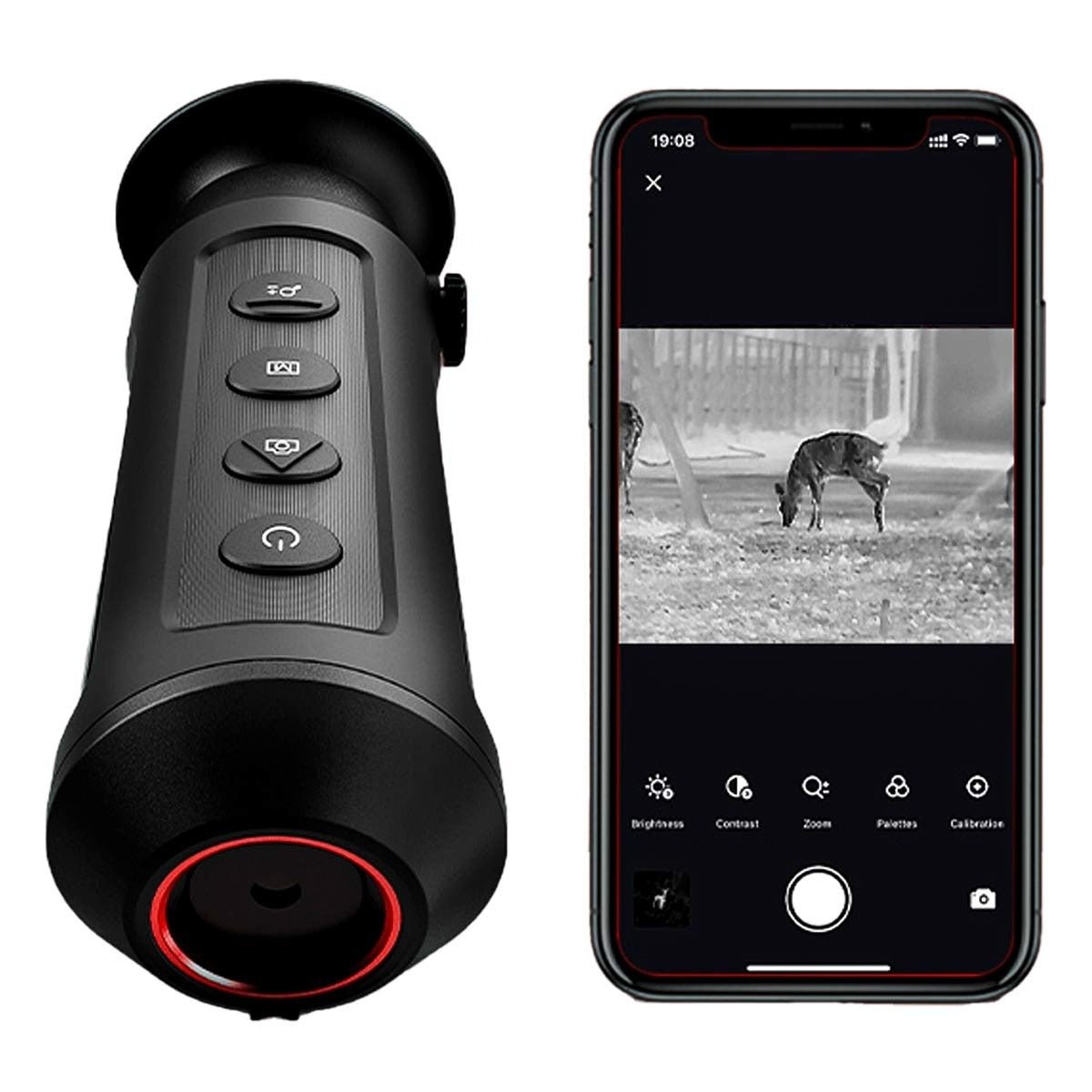

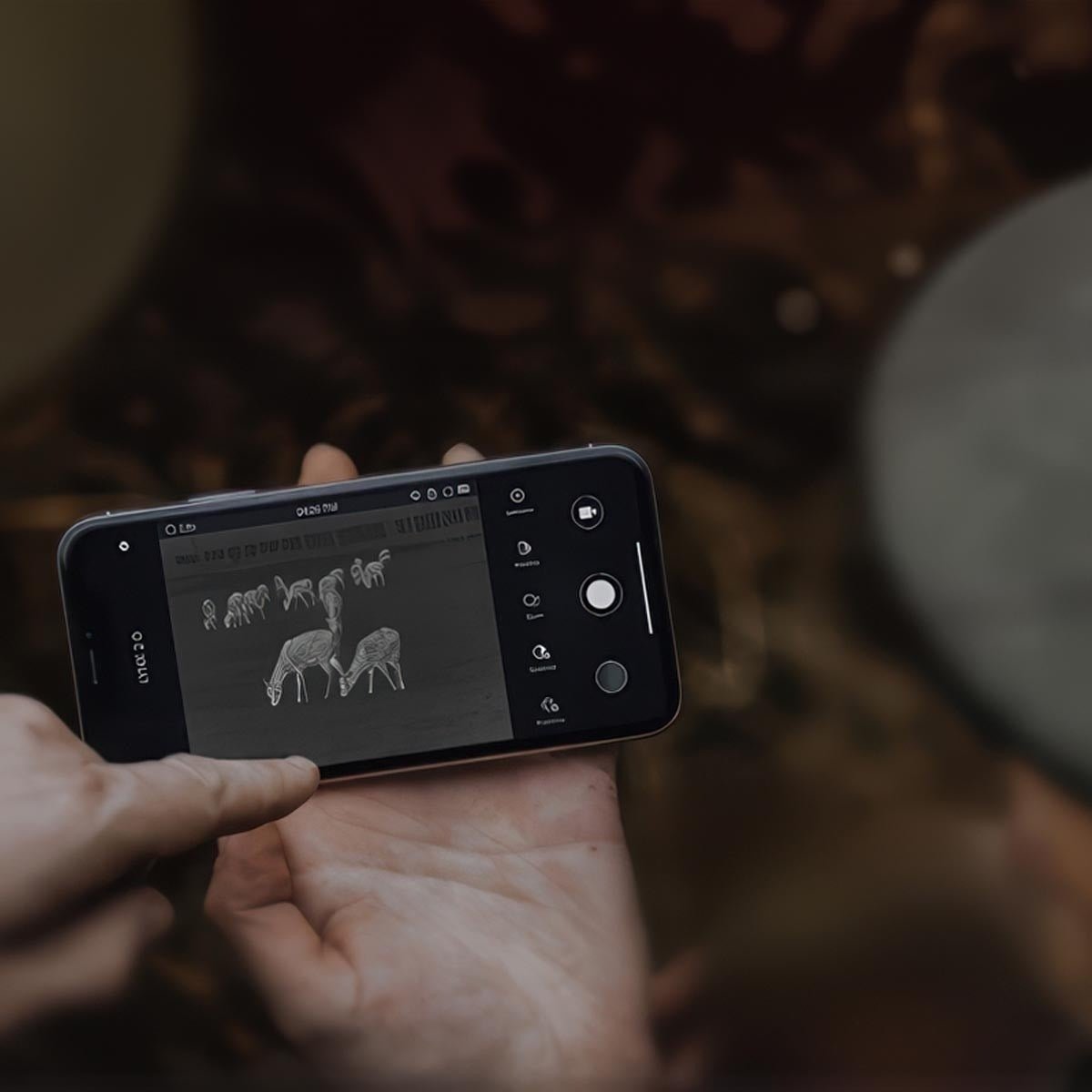

The integrated 8 GB memory allows videos and snapshots to be saved directly on the device and transferred to a PC via a Type-C USB port. The monocular also has a hotspot mode that allows the user to use their smartphone as an additional screen with the HIKMICRO Sight app.
The monocular weighs only 250 grams and is easy to transport thanks to its compact design.
main features
- High-resolution 0.32-inch OLED display with clear and crisp images
- 1.0x to 4.0x digital magnification
- 50 Hz frame rate smooth and detailed image reproduction
- VOx Uncooled Focal Plane Arrays high image quality in all lighting conditions
- Detection range of up to 1200 m, ideal for distant objects

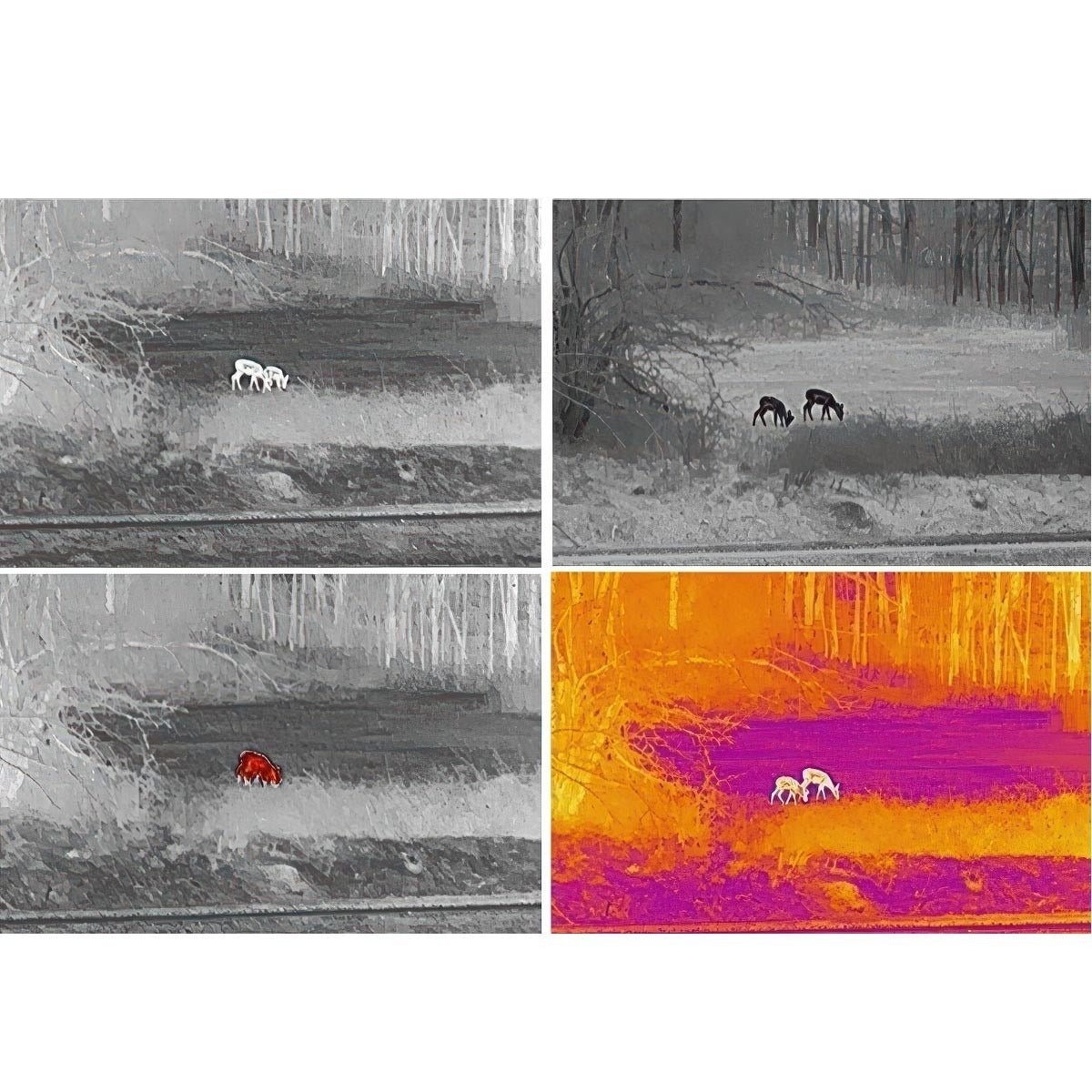

- Multiple color palettes, adaptable to different environments
- Focus-free operation immediate readiness for use without manual focusing
- Waterproof and dustproof according to IP67 for extreme conditions
- Integrated 8 GB memory stores videos and images directly in the device
- Rechargeable lithium battery long battery life of up to 10 hours
- User-friendly UI design and quick access to functions
- Compact dimensions, fits in any bag and is easy to transport
- Integrated Wi-Fi hotspot enables connection and control via app
- Contrast and brightness adjustment for optimized image display
- Type-C USB interface
Technical data
thermal module | |
image sensor | VOx Uncooled Focal Plane Arrays |
Max. Resolution | 160 x 120 |
frame rate | 50 Hz |
pixel interval | 17 μm |
answer waveband | 8 μm to 14 μm |
NETD | Less than 35 mK (at 25°C, F# = 1.1) |
lens (focal length) | 6.2 mm, F1.1 |
detection range | 250 m |
focus mode | Focus Free |
Min. focusing distance | 1 m |
enlargement | 1.0x to 4.0x |
field of view (H x V) | 24.7° x 18.7° |
degrees / m at 100 m | 43.8 mx 32.9 m |
image display | |
display | 800 x 600; 0.32-inch; OLED |

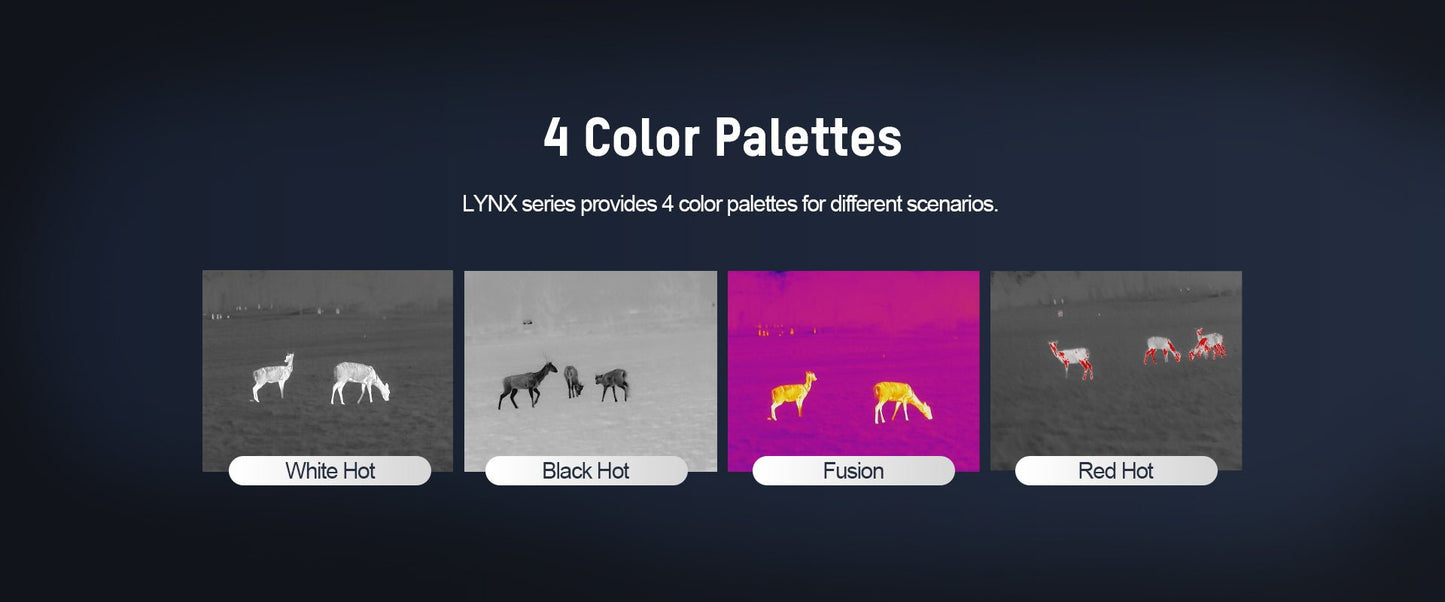

pallets | Black Hot, White Hot, Red Hot, Fusion |
FFC (Flat Field Correction) mode | Auto, Manual, External Correction |
Finishing Student | 20 mm |
eye relief | 6 mm |
diopters (range) | -5D to +4D |
brightness adjustment | Yes |
pitch adjustment | Cold, warm |
contrast setting | Yes |
system | |
Record video | Yes |
Capture a snapshot | Yes |
audio recording | Yes |
standby mode | Yes |
storage | Integrated memory module (8 GB) |
PIP | Yes |
Wi-Fi hotspot | Yes |
Hot Lead | Yes |
measuring the distance | Yes |
power supply | |
battery type | Rechargeable lithium battery |
battery life | 10 hours of continuous operation with CVBS and hotspot switched off (at 25°C) 8.5 hours of continuous operation with CVBS and hotspot switched on (at 25°C) |
USB Type-C | DC 5 V/2 A; Supports external power supply |
Generally | |
weatherproof | IP67 |
Dimensions | 158.4mm x 60.4mm x 57mm (6.24" x 2.38" x 2.24") |
working temperature | -20°C to 55°C (-4°F to 131°F) |
Weight | 250 g (0.55 lbs) |
