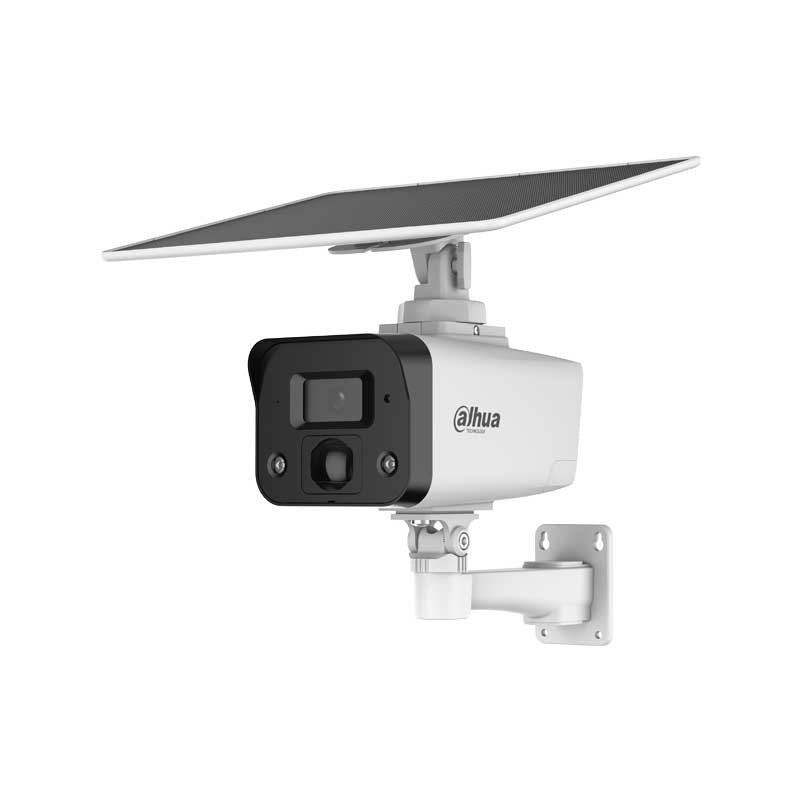

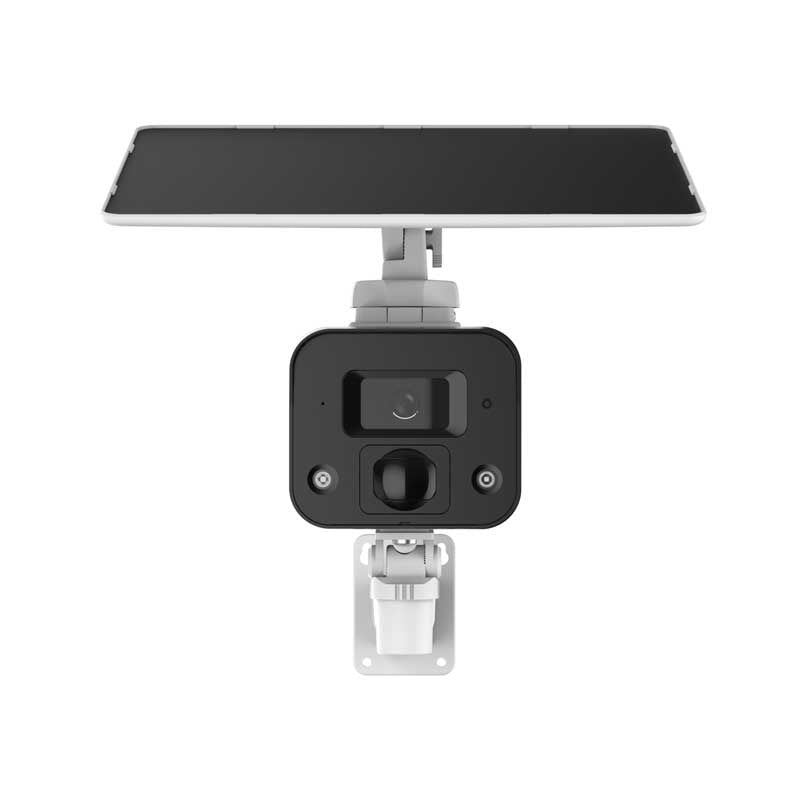

Titan D1 Dahua TITAN D1
4MP Smart Dual Light Fixed-focal Bullet 4G Solar Power Network Camera
Ideal für Ausseneinsatz in der Schweiz.
Betriebstemperatur –30 °C bis +60 °C (–22 °F bis +140 °F)
4-MP-1/3-Zoll-CMOS-Bildsensor, geringe Leuchtdichte und hochauflösendes Bild.
Ausgabe max. 4 MP (2560 × 1440) bei 15 fps.
H.265-Codec, hohe Komprimierungsrate, extrem niedrige Bitrate.
Integriertes Warmlicht und IR-LED, maximale IR-Reichweite 30 m und maximale Warmlichtreichweite 20 m.
Kopplung von Ton- und Lichtalarm. Wenn der Alarm ausgelöst wird, werden Ton und Licht gekoppelt.
Integriertes leistungsstarkes 4G-Modul, das für alle Mobilfunknetze geeignet ist.
Die Installation ist nicht mehr auf kabelgebundene Netzwerke beschränkt.
Integrierter PIR-Sensor, der den menschlichen Körper durch passives Infrarot erkennt, das empfindlich auf Körpertemperatur reagiert.
Im AOV-Modus wird die Kamera aktiviert, wenn eine Person oder ein Fahrzeug erscheint, und bietet so eine Überwachung rund um die Uhr bei extrem geringem Stromverbrauch.
Unterstützt Micro-SD-Karten mit maximal 512 GB; integriertes Mikrofon und Lautsprecher; unterstützt Zwei-Wege-Kommunikation.
Das Solarpanel ist sowohl in integrierter als auch in abnehmbarer Ausführung erhältlich und unterstützt eine mehrdimensionale Winkelverstellung.
Es verfügt über einen integrierten 64-Wh-Lithium-Eisenphosphat-Akku mit hoher Kapazität und stabiler Leistung.
Die MAX-Version verwendet einen Akku für einen breiten Temperaturbereich, wodurch sie für eine grössere Anzahl von Regionen weltweit geeignet ist.
Es unterstützt sowohl 12-VDC- als auch Typ-C-Stromversorgungsoptionen, die jeweils zum Anschluss eines externen Solarpanels und zum vorübergehenden Laden mit einer Powerbank verwendet werden.
IP67-Schutz.
SMD.
Titan D1 IPC-HFW2441DG-4G-SP-B-MAX
| Camera | |||||
| Image Sensor | 1/3″ CMOS | ||||
| Max. Resolution | 2560 (H) × 1440 (V) | ||||
| ROM | 128 MB | ||||
| RAM | 128 MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||
| Min. Illumination | 0.01 lux@F1.6 (Color, 30 IRE) | ||||
| 0.001 lux@F1.6 (B/W, 30 IRE) | |||||
| 0 lux (Illuminator on) | |||||
| S/N Ratio | >40 dB | ||||
| Illumination Distance | 3.6 mm: Up to 30 m (98.43 ft) (IR) | ||||
| Up to 20 m (65.62 ft) (Warm light) | |||||
| Illuminator On/Off Control | Auto;Manual | ||||
| Illuminator Number | 1 (IR LED); 1 (Warm light) | ||||
| Angle Adjustment | Pan: 0° to 360° | ||||
| Tilt: –60 °to 0° | |||||
| Rotation: 0° to 360° | |||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Focal Length | 3.6 mm | ||||
| Max. Aperture | F1.6 | ||||
| Field of View | 3.6 mm: H: 78.4°; V: 42.4°; D: 92.4° | ||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 3.6 mm: 1.5 m (4.92 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 78.0 m | 31.2 m | 15.6 m | 7.8 m | ||
| 3.6 mm | ( 255.91 ft) | ( 102.36 ft) | ( 51.18 ft) | ( 25.59 ft) | |
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |||||
| Intelligence | |||||
| Intelligence Notes | SMD | ||||
| Video | |||||
| Video Compression | H.265 | ||||
| Video Frame Rate | Main stream: 2560 × 1440@(1–15 fps) | ||||
| sub stream: 640 × 360@(1–15 fps) | |||||
| *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | |||||
| Streaming Capability | 2 streams | ||||
| Resolution | 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||
| Video Bit Rate | H.265: 32 kbps–4096 kbps | ||||
| Day/Night | Auto(ICR)/Color/B/W | ||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| WDR | DWDR | ||||
| White Balance | Auto | ||||
| Gain Control | Auto | ||||
| Noise Reduction | 3D NR | ||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||
| Smart Dual Light | Yes | ||||
| Privacy Masking | 4 areas | ||||
| Audio | |||||
| Built-in MIC | Yes, built-in Mic | ||||
| Built-in Speaker | Yes, built-in speaker | ||||
| Audio Compression | G.711a | ||||
| Alarm | |||||
| Alarm Event | SD card error; SD card full; motion detection; PIR alarm; low battery alarm | ||||
| Network | |||||
| Network Port | RJ-45 (10/100 Base-T) | ||||
| Carrier Network System | FDD-LTE: B1/B3/B5/B7/B8/B20/B28; | ||||
| Applicable regions: Europe, Middle East, Africa | |||||
| Power class 3: 23dBm ±2.7dB | |||||
| FDD-LTE: B2/B3/B4/B5/B7/B8/B28/B66; | |||||
| Applicable regions: Latin America | |||||
| Power class 3: 23dBm ±2.7dB | |||||
| SDK and API | Yes | ||||
| Interoperability | P2P | ||||
| Storage | Micro SD card (support max. 512 GB) | ||||
| Management Software | DMSS; DSS Pro | ||||
| Mobile Client | iOS;Android | ||||
| Certification | |||||
| Certifications | CE-LVD: EN62368-1; | ||||
| CE-EMC: Electromagnetc Compatbility Directve 2014/30/EU; | |||||
| CE-RED: Radio Equipment Directve 2014/53/EU; | |||||
| Port | |||||
| USB | 1 Type-C Port | ||||
| Power | |||||
| Power Supply | 12 VDC | ||||
| Power Consumption | Ultra power saving mode: 0.036 W; | ||||
| Power saving mode: 0.047 W; | |||||
| AOV mode: 0.26 W; | |||||
| Performance mode: 1.33 W | |||||
| Environment | |||||
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | ||||
| Operating Humidity | ≤95% (RH), non-condensing | ||||
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | ||||
| Storage Humidity | ≤95% (RH), non-condensing | ||||
| Protection | IP67 | ||||
| Structure | |||||
| Casing Material | Plastic | ||||
| Product Dimensions | 256 mm × 290 mm × 197 mm (10.08″ × 11.42″ × 7.76″) (L × W × H) | ||||
| Net Weight | 1357 g (2.99 lb) | ||||
| Gross Weight | 2869 g (6.33 lb) | ||||
| Battery | |||||
| Operating Temperature | Charging: –30 °C to +60 °C (–22 °F to +140 °F) | ||||
| Discharging: –40 °C to +60 °C (–40 °F to +140 °F) | |||||
| Net Weight | 550 g (1.21 lb) | ||||
| Battery Type | Lithium iron phosphate | ||||
| Battery Capacity | 64Wh | ||||
| Battery Voltage | 6.4 V | ||||
| Cycle Lifetime | Ultra power saving mode (no-trigger recording): 76 days | ||||
| Power saving mode (30 daily alarms of under 15s each): 56days | |||||
| AOV mode (30 daily alarms of under 15s each): 10 days | |||||
| Performance mode (continuous recording): 2 days | |||||
| Battery Life | More than 1,000 cycles | ||||
| Solar Module | |||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
| Product Dimensions | 285 mm × 235 mm × 2.5 mm (11.22″ × 9.25″ × 0.1″) (L × W × H) | ||||
| Max. Power | 10.5 W | ||||
| Cell Type | Monocrystalline silicon | ||||
